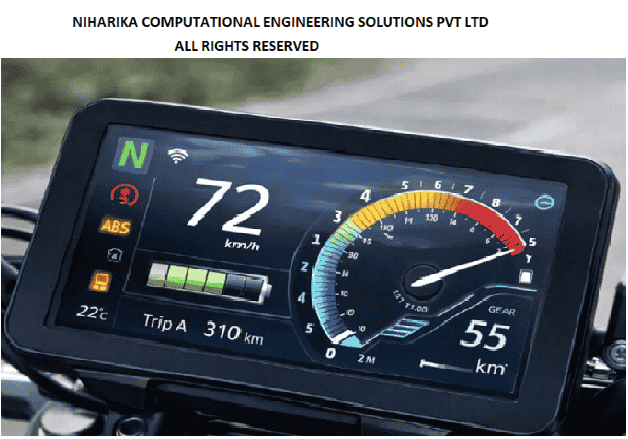

Structural optimization of cluster unit using FEA
Optimizing cluster assembly design through Finite Element Analysis (FEA) involves a sophisticated approach to enhancing both the efficiency and robustness of mechanical systems. This process leverages advanced computational techniques to simulate and evaluate multiple facets of design under varied operational conditions, ensuring that the structural components meet rigorous standards for performance and reliability. By modeling stress distribution, deformation patterns, and thermal responses within an assembly, engineers can preemptively identify potential failure points or inefficiencies long before physical prototypes are developed. FEA thus plays a critical role in refining designs by iteratively adjusting parameters to achieve optimal outcomes—such as reduced material usage, increased load-bearing capacity, or enhanced durability—thereby saving time and resources in product development cycles. This methodology not only enhances precision but also supports innovation by allowing designers to explore complex geometries that traditional methods might deem unfeasible, ensuring competitive advantage in an ever-evolving engineering landscape.
